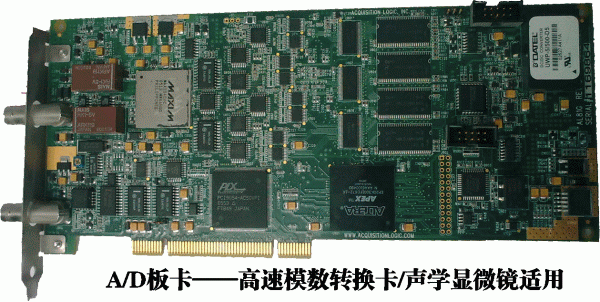

适用于KSI公司2005年前生产的常规扫描声学显微镜的模数转换卡，它的采样速率能达到1GHz，8位字长，单通道。
早期KSI公司生产的部分超声波扫描显微镜设备以及Sonix生产的超声波电子显微镜，会用到这块高速数据采集转换卡。

适用于早期KSI和Sonix等品牌的超声波扫描电子显微镜AD卡-模数转换卡



Analog Section

  • Single channel analog input
  • DC coupling
  • 50 Ohm input impedance
  • Input ranges: 125, 250, 500 mV and 1V

Peak-to-peak

  • Bandwidth: DC to 350 MHz
  • Fine offset and gain control

A/D Converter

  • 1 Gsamples/sec sampling rate, 8 bits

resolution, single channel

Sampling Rates

  • Sampling rates: 1000, 500, 250 & 100 MSamples/sec

Connectors

  • BNC connector for analog signal input
  • BNC connector for trigger input/output

Trigger Sources

  • Signal Threshold Trigger
  • Encoder trigger
  • Software trigger
  • Internal trigger connector (3 pin header)
  • External trigger input

Acquisition Control

  • Pre-trigger and Post-trigger delay

acquisition

  • Auto re-arming
